Pre-coating Vacuum Filter
Last update 2022-05-27
Brief introduction

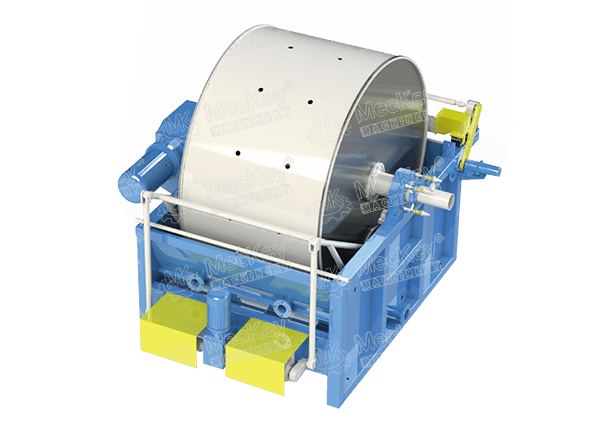

MKPF pre-coating rotary-drum vacuum filter is developed and manufactured by absorbing foreign advanced technology. It is the high efficient and precise solid & filtrate separation equipment by adding pre-coating technology to the ordinary drum filter. Running continuously and have characteristics of automatic, high filter speed and easy maintenance.
Application
The professional manufacturing techniques and advanced design make it be widely used in pharmaceutical, food, sugar refining, chemical industries. It is used for the need of absorbing the filtrate and removing the filter residue.
Main technical specification
| Model | MKPF4 | MKPF10 | MKPF15 | MKPF20 | MKPF25 | MKPF30 | MKPF35 | MKPF40 | MKPF45 | MKPF50 | MKPF60 | MKPF70 |
| Filter Area(㎡) | 30~35% | |||||||||||
| Capacity(m³/㎡·h) | 0.32~0.56 | |||||||||||
| Vacuum(MPa) | 0.04~0.06 | |||||||||||
| Drive Power | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 | 4 | 4 | 7.5 |
| Stirring Frequency/min | 21 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Agitator Power | 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |

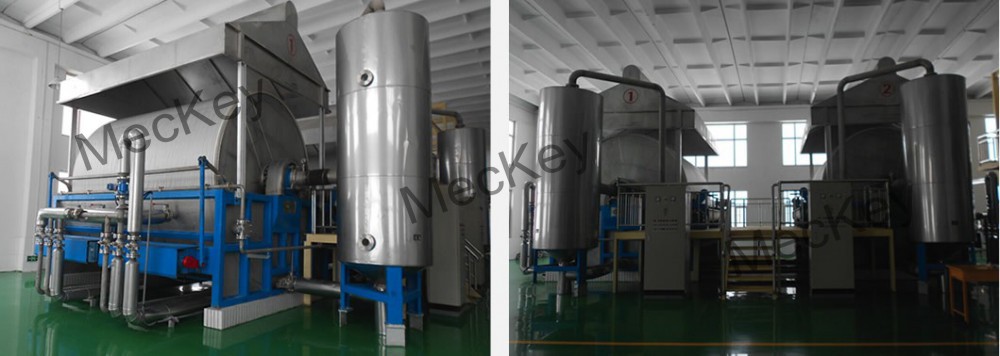

Site photo
